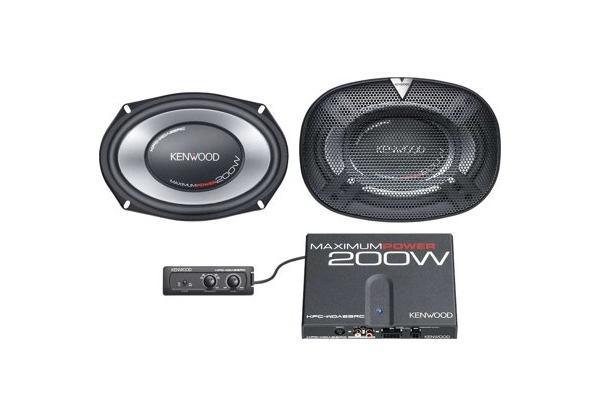

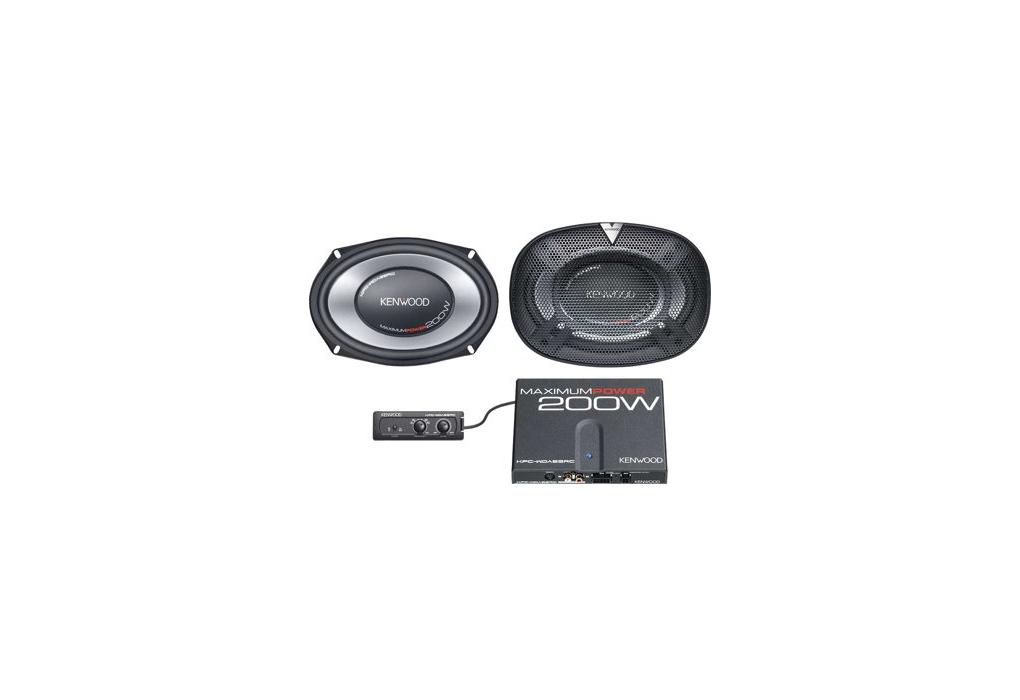

KFC-WDA69RC
New Concept Bass System for Compact Vehicle, Installation for Rear Deck
DISCONTINUED MODEL
Key Features
| New Concept Bass System for Compact Vehicle |
| Installation for Rear Deck (Saving the Space of Trank Room) |
| 6"x9" Whisker Pearl Mica Cone Woofer |
| D-class Amplifier Circuit (Mono Channel) |
| Speaker Level Input for Easy Up-grade |
Speaker Features
| Speaker System | 6"x9" Powered Subwoofer System |
| Speaker Type | Subwoofer |
| Peak Input Power | 200W |
| Rated Input Power | 50W |
| Speaker Size | 6"x9" |
| Magnet Type | Ferrit |
| Terminals | Slide type |
| Magnet Cover | No |
| Gasket Installation | one-way |
| Installation Capabillity | Door/Rear Deck |
| Wired remote included | Yes |
| Cross-over Network | Built-in amplifier |
| Amplifier Included | Yes |
Amplifier Features
| Class D Amplifier | Yes |
| Load Capability | 1.5Ω Stable |
| Maximum power output | 200W |
| Low-pass Filter | Yes |
| Phase inverter 0°(Normal) / 180°(Reverse) | Yes |
| Power Indicator | Yes |
| Line in | RCA |
| Speaker level Input | Yes |
| Yes | |
| DC cable Supplied | yes |
Speaker/woofer Specifications
| Maximum Input Power | 100W |
| Rated Input Power | 50W |
| Woofer Cone material | Whisker Pearl Mica Cone |
| Speaker Basket | Steel |
| Weight of Magnet | 442gr |
| Speaker Surround | Rubber |
| Frequency Response | 30Hz ~ 6000Hz |
| Subwoofer Impedance | 1.5Ω x 1 |
| Dimensions (W x H x D) | 255 x 184 x 110.4mm |
| Mounting Depth | 76.4mm |
| Speaker Weight with Grille (pc.) | 1600gr |
Amplifier-Specifications
| Maximum power output (4Ω) | 200W x 1 |
| Rated power output (4Ω, 14,4V, DIN:4524) | 100W x 1 |
| Low-pass Filter | 50Hz, 80Hz, 100Hz, 150Hz (4 steps) |
| RCA Input Sensitivity | 0.2 ~ 4.2V |
| Input Impedance | 10kΩ |
| Signal to Noise Ratio | 85dB |
| Frequency response (+0dB, -3dB) | 30Hz ~ 150Hz |
| Operating voltage | 14.4V (10.5V ～ 16V allowable) |
| Maximum current consumption | 10A |
| Dimensions (WxHxD) | 195 x 30 x 155(mm), |
| Weight | 0.8kg |
Accessories
| Bracket | 2 |
| Remote control | |
| 4x16mm Screw: 4 pieces, M4x8 Machine screw | |
| Protector 2 pc | |
| Butyl Rubber | |
| Speed nut, 8 pc | |
| Velcro tape | |
| Grille assembly included | Yes |
| Speaker cable | 0m |
Cross-over Network Specifications
| Gross Weight | 4000gr. |
