KDC-220UI
CD-Receiver with Front USB & AUX Input
DISCONTINUED MODEL
Key Features
| Variable Colour Illumination |
| 13 digits, 1,5 Line Wide LCD Display |
| MP3 & WMA playback (CD/USB) |
| WAV & flac(48kHz/16bit)files playback (USB) |
| 3 Band Parametric Equalizer |
| 1 RCA Preouts (2,5V) |
| Front AUX input & Illuminated USB with dust cover |
| iPhone Music Playback |
| 1A Charge for Smartphone |
| Less the 1mA Dark Current Consumption |
General Features
| DIN Size | 1 DIN |
| Detachable Faceplate | Yes |
| Key Illumination | Variable LED |
| Rotary Encoder & Control Knob | Yes |
| Accent key | Handsfree & Audio settings |
| Back-up Memory | Menu Settings |
| Attenuator with Smooth Volume Return | Yes |
| Touch Sensor Tone | Yes |
| Digital Clock (24H) | Yes |
| All-off Select (20/40/60 minutes) | Yes |
| Built-in Connector | Mitsumi, 16 pin |
| ISO connector | Yes, New Mitsumi to ISO cable |
| Firmware upgreadable | Yes |
Display Features
| Display Type | Liquid Crystal Display (LCD) |
| Display Layout | 2 line text + custom icons |
| Vertical Aligment Liquid Crystal Display | Yes |
| Display Illumination | Variable by RGB LED |
| Dimmer Control | Manual / Set by Timer |
| Brightness control | Display (32 steps) |
| Demo Mode | Yes |
| Menu text in selectable language | English/Spanish/Russian |
| TAG Language Display | English, Spanish, Russian & Greek |
Cosmetics features
| Dress plate | Piano Black |
| Preset key finish | Piano Black |
| Escutcheon finish | Piano Black |
| Volume & operation knob or wheel | Chrome Finished Ring |
| Triangle Illumination | Red LED |
| Key illumination | Variable by RGB LED |
| Illumination of USB & AUX terminals | Variable by RGB LED |
| Variable color illumination | Yes |
| Lightning bar | Yes |
Tuner Features
| Station Select | Manual / Preset |
| FM Reception | Yes |
| FM Stereo / Mono Selector | Yes |
| AM (MW/LW) Reception | Yes |
| Up/Down Seek/Scan | Yes |
| Tuner Presets (FM/AM) | 24 Presets (18FM / 6AM) |
| Mixed preset memory (FM & AM) | 6 presets |
| Automatic Memory Entry (AME) | Yes |
| Tuner Preset Back-up Memory | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
Playable Audio File
CD Features
| CD-R/RW Compatible | Yes |
| CD Text with special Character Support | English, Spanish, Russian & Greek |
| D.A.C. processing | 24bit |
| 0 bit Mute | Yes |
| Random Function | DISC Random/Random OFF |
| Repeat Function | Track Repeat/All Repeat |
USB Features
| USB terminal | Yes, Front with dust cover |
| USB Type | 2.0 High speed |
| Drive Change | Yes |
| Repeat/Scan/Random search | Yes |
| Repeat / Random Play | Yes |
| Direct search | Yes |
| Last Position Memory / Resume | Yes |
| Time code display | Yes |
| 1A Charge Capability for Smartphone. | Yes |
iPhone Features
| Made for iPod & iPhone * | Yes |
| USB Direct Control (Audio, 1 wire, Lightning-connector) | with optional cable KCA-iP103 |
| Music playback | Yes |
| Alphabet search | Yes |
| Skip search | Yes |
| Related search | Yes |
| Direct Search | Yes |
| iPod EQ Mode | Yes |
| Control by hand | Yes |
| App & iPod control mode | Yes |
| Reverse browsing | Yes |
| Battery charge + power control | Yes |
| * Always update to latest Apple firmware |
Audio Features
| Maximum Output Power | 50W x 4 |
| MOSFET Power IC | Yes |
| Auxiliary Type | Mini-jack, front panel |
| Pre-out | 1 RCA |
| Pre-out Output Level | 2.5V |
| Preout Rear / Subwoofer Switchable | Yes |
| Subwoofer Reference Level Adj. | Yes |
| Tone Control / Easy EQ | 3-Band, 8 Presets |
| Balance/Fader/Loudness Control | Yes |
| Bass Boost Circuit | Off/+1/+2/+3/+4/+5 |
| Att.(-20dB) with smooth Volume Return | Yes |
| System Q | Preset EQ |
| Parametric Equalizer + Presets | 3-Bands Parametric Equalizer with 8 Presets. |
| Low-pass Filter | Yes |
| Speaker Size Control | Yes, Off/10cm/13cm/16cm/6x9inch |
| Kenwood Sound Reconstruction | Yes |
| Drive EQ | Yes |
Connectivity
| Front USB & AUX Input | Yes |
| DC-Cord | Mitsumi to ISO |
| Power Control (P.CON) wire | Yes |
| Amplifier pre-out | 1 RCA: Rear/Subwoofer (selectable) |
| FM Antenna Input | |
| OEM Wired Remote Control ready | Yes |
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.71μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity | 2μV/75ohm (S/N 46dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 64dB |
| FM Stereo Separation (1kHz) | 40dB |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 28.2μV |
| LW range: 153kHz - 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 50μV |
Codec Specs
| MP3 Format | MPEG 1/2 Audio Layer 3-Files |
| WMA Format | in accordance with Windows Media Audio |
| WAV Format | RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format | FLAC files (up to 96kHz/24bit) |
CD Specifications
| Laser Diode | GaAIAs |
| Digital Filter(D/A) | 8 Times Over Sampling |
| Digital/Analogue Converter | 16 Bit |
| Wow & Flutter | Below Measurable Limit |
| Frequency Response | 20Hz ~ 20kHz (±1dB) |
| Total Harmonic Distortion | 0.01% (1kHz) |
| Signal to Noise Ratio | 105dB (1kHz) |
| Dynamic Range | 90dB |
| Channel Separation | 85dB |
| MP3 Decoder | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decoder | Compliant with Windows Media Audio |
USB Specifications
| USB Version compatibility | USB 2.0 High Speed |
| File System | FAT 32/16/12 |
| Maximum Supply current | 1500mA |
| D/A Converter | 16 bit |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| WAV Decode | Linear - PCM Files |
| flac Decode | FLAC files up to 48kHz/16bit |
Audio Specifications
| Maximum Power | 50 W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22 W x 4 |
| Preout Level | 2500 mV / 10 kOhm, |
| Preout Impedance | ≤ 600 Ohm |
| Speaker Impedance | 4 Ohm ~ 8 Ohm |
| AUX Frequency Response | 20 Hz ~ 20 kHz (±1dB) |
| AUX Maximum Input Voltage | 1000 mV |
| AUX Input Impedance | 30 kOhm |
Accessories
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Mitsumi to ISO) | 15 cm |
General Specifications
| Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dark Current Consumption | Below 1mA |
| Dimensions (WxHxD) | 182 x 53 x 158mm |
| Weight | 1300 gr. |
| Operation Temperature Range | -10°C ~ 60°C |
| Instruction Manuals | Multi-language quick Guide |
KDC-220UI - iPhone/iPod | USB | AUX | CD | Receiver

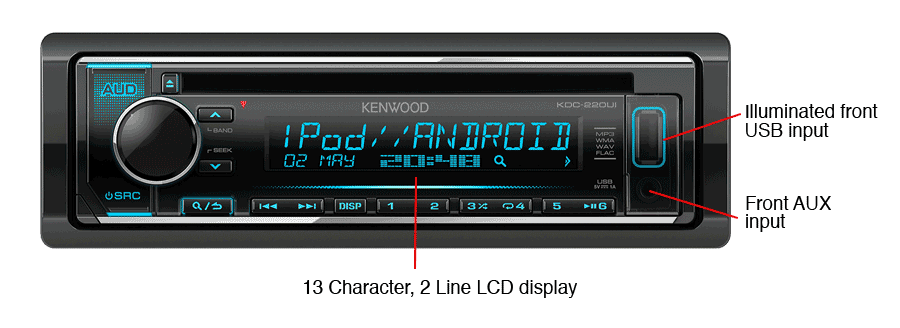

Front panel with variable key illumination
iPhone / iPod music playback
Plug in your iPhone or iPod using the Apple white USB lead provided with the device, into the front USB input and access your music library or Apple Music direct from the KDC-220UI.
Also the USB input charges your Apple device on the more.
FLAC playability
FLAC (Free Lossless Audio Codec) is a music compression format specifically designed for audio lovers, having smaller file sizes but without the loss of quality. Kenwood is the first manufacturer to step into the quality sound of FLAC in the car audio industry.
Front USB input / Android charge
Full speed USB 2.0.
Charge your compatible Android smartphone with the USB port, up to a maximum of 1A.
