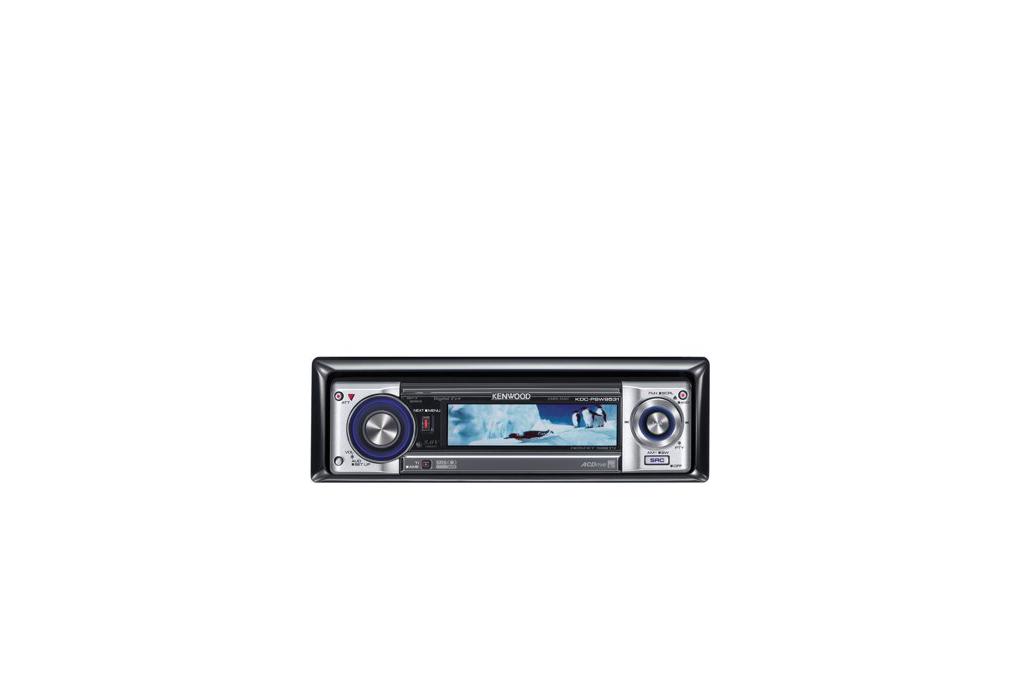

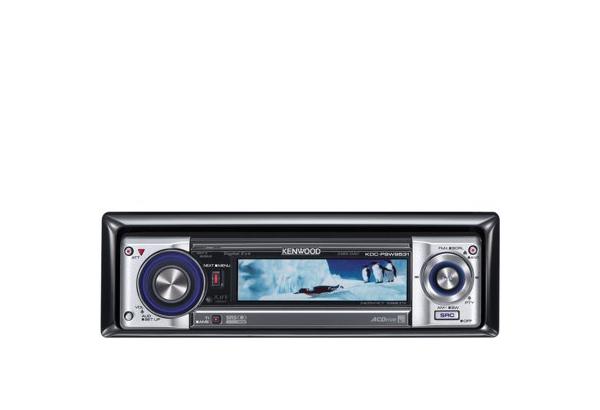

KDC-PSW9531

KDC-PSW9531

AAC/WMA/MP3/CD-Receiver with Changer Control

State-of-the-art model equipped with a 4096-colour OEL display offering super-high contrast and brightness, and heightened 3D realism. For complete sound control there’s a built-in DSP featuring 4-band parametric EQ, DTA, Sound Management System, and SRS WOW Digital to let you personalize sound to your own taste.
  • Detachable Faceplate
  • IR remote controller included
  • AM (MW/LW) Reception
  • Radio Data System
  • OEM Wired Remote Control ready
  • OEM Display Control ready

Key Features

Fully Motorized Slide-Down Mechanism with Detachable Faceplate
Multicolour OEL Display (Customizable image)
Maximum Output Power : 50W x 4, 3 Preouts (5V), Aux-in
DSP Built-in, Dual Zone Source
AAC, MP3 & WMA Decoder, 24-Bit Digital Audio Converter

General Features

DIN Size1 DIN
Detachable FaceplateYes
Protection Case For FaceplateYes
Faceplate MechanismMotorized Slide Down
Angle Adjustment3 steps
Security Code FunctionYes
Key IlluminationSelectable: Red or Green
Rotary Encoder & Control KnobYes
Installer MemoryYes
Back-up Memory
Attenuator with Smooth Volume ReturnYes
Touch Sensor ToneYes
IR remote controller includedRC-527
Digital Clock (24H)Yes
All-off Select (20/40/60 minutes)Yes
ISO connectorYes

Display Features

Display TypeMulticolour(4,096colours) OEL(Organic Electro-Luminescence) Display
Display LayoutFull Dot (256x64dot)
Display IlluminationOEL(Organic Electro-Luminescence)
Spectrum Analyzer
Dimmer Control2 steps - Automatic
Contrast ControlYes
Demo ModeYes
Special Character DisplayNo
Display CustomizeYes


CD Features

CD-R/RW CompatibleYes
MP3 Playback with ID3 Tag DisplayYes
WMA (Windows Media Audio) PlaybackYes
AAC (Advanced Audio Coding) PlaybackYes
Voice IndexYes
CD Text SupportYes
CD Text with special Character SupportNo
D.A.C. processing24 bit
Random Function
Repeat Function
Scan Function
ACDrive, PC Application Software includedYes

USB Features


iPod Features

Made for iPodYes
iPod control by 5L busYes, with optional KCA-iP500
Music playbackYes
Battery charge + power controlYes

External Media Control Features

Dual Changer Control (CH1, CH2 & AUX)Yes
CD Text Ready with Compatible KENWOOD UnitsYes
Disc & Track RepeatYes
Disc & Track ScanYes
Disc & Track Random PlayYes
Direct AccessYes
Disc Name Preset Play (DNPS)Yes

Audio Features

Maximum Output Power50W x 4
MOSFET Power ICYes
Auxiliary inputRCA
Pre-out3 Gold plated RCA
Pre-out Output Level5V
Subwoofer Reference Level Adj.Yes
Built-In Amplifier Cut-OffYes
Dual-Zone Source & Volume ControlYes
Dual-Zone (FRONT / REAR Switchable)Yes
Source Tone Control & MemoryBass / Mid / Treble
Balance/Fader/Loudness ControlYes
Att.(-20dB) with smooth Volume ReturnYes
System Q_EX (Preset & Manual Sound Control)Yes

DSP-Features

Parametric Equalizer - 4 BandsYes
Sound Management SystemYes
SRS WOW Digital (SRS 3D/TrBass/Focus)Yes
ODD (Offset Dual Differential) D/A SystemYes
Dynamic Range Control(Wide/Normal/Midnight)Yes
Digital System E's+Yes

Connectivity

Changer Control (5L-Bus)Yes
External Option Control (5L-Bus)Yes
iPod I/F Control (5L-Bus)Yes
PS Amplifier Control System (5L-Bus)PS Amplifiers ('02 - '06)
B.M.S.Control ('99-'03 Amps)Yes
Advanced B.M.S. Control ('02 Amps)Yes
OEM Wired Remote Control readyYes
OEM Display Control readyYes
2-way (Tel/Navi) mute wireYes
Dimmer control wireYes

Tuner Specifications

FM Frequency Range87.5MHz ~ 108MHz
FM Frequency Step50kHz
FM Usable Sensitivity0.7μV/75ohm (S/N 26dBf)
FM Quieting Sensitivity1.6μV/75ohm (S/N 46dBf)
FM Frequency Response30Hz ~ 15kHz (± 3dB)
FM Selectivity(DIN)over 80dB (±400kHz)
FM Stereo Separation (1kHz)35dB
MW Frequency Range531kHz ~ 1611kHz (9kHz step)
MW Frequency step9kHz
MW Usable Sensitivity25μV
LW Frequency Range153kHz ~ 281kHz (9kHz step)
LW Usable Sensitivity45μV

CD Specifications

Laser DiodeGaAlAs
Digital Filter(D/A)8 Times Over Sampling
Digital/Analogue Converter1 Bit
Spindle Speed1000 ~ 400rpm (CLV: 2 times)
Wow & FlutterBelow Measurable Limit
Frequency Response10Hz ~ 20kHz (±1dB)
Total Harmonic Distortion0.008% (1kHz)
Signal to Noise Ratio110dB (1kHz)
Dynamic Range93dB
MP3 DecoderCompliant with MPEG-1/2 Audio Layer-3
WMA DecoderCompliant with Windows Media Audio
AAC DecoderAAC-LC ".m4a" files

Audio Specifications

Maximum Power50W x 4
Output Power (DIN45324,+B=14.4v)30W x 4
Preout Level5000mV / 10kOhm,
Preout Impedance≤ 80Ohm
AUX Frequency Response20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage1200mV
AUX Input Impedance100kOhm

DSP Specifications

Parametric Equalizer - Band 160Hz ~ 200Hz
Parametric Equalizer - Band 2250Hz ~ 1kHz
Parametric Equalizer - Band 31.25kHz ~ 4kHz
Parametric Equalizer - Band 45kHz ~ 16kHz
Equalizer Gain–9db ~ 9db
Q Control0.25/ 0.50/ 1.00/ 2.00
High Pass Filter frequencyThrough/30 ~ 250 (Hz)
High Pass Filter Slope-12/-18/-24 dB/Oct
Low Pass Filter frequency30 ~ 250(Hz)/Through
Low Pass Filter Slope-12/-18/-24 dB/Oct
Time Alignment0 - 610cm(5 cm step)

General Specifications

Operating voltage14.4V (11 ~ 16V Allowable)
Maximum Current Consumption10A
Dimensions (WxHxD)182 x 53 x 155mm
Weight1650 gr.
