LZ-760R
7.0" Wide On-Dash Monitor with Quick Release system
Key Features
| 7.0 inch Wide Colour TFT Active Matrix Display |
| Interactive Touch Panel Control |
| Quick Releasable Monitor System |
| 2 AV Input (RCA, PAL/NTSC Automatic Selection) |
| 1 AV Output (RCA) |
| RGB Input for Navigation System |
| Monitor Stand Included |
| Speaker built-in |
Monitor Features
| In-Dash/On-Dash | On-Dash |
| Screen Type | TFT 7,0" Wide |
| Touch Panel | |
| Display Mode | 4 Mode (Full/Just/Zoom/Normal) |
| Screen Adjustments | Brigtness/Tint/Color/Contrast/Black Level/Dimmer |
| Dimmer function | Automatic |
| Visual Source Mode | Video1/Video2 (Rear Camera)/TV/Navigation |

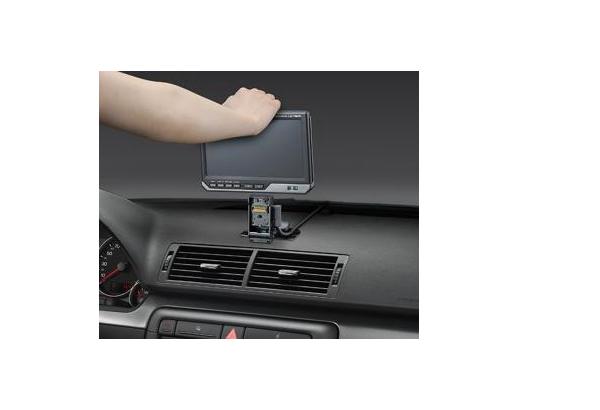

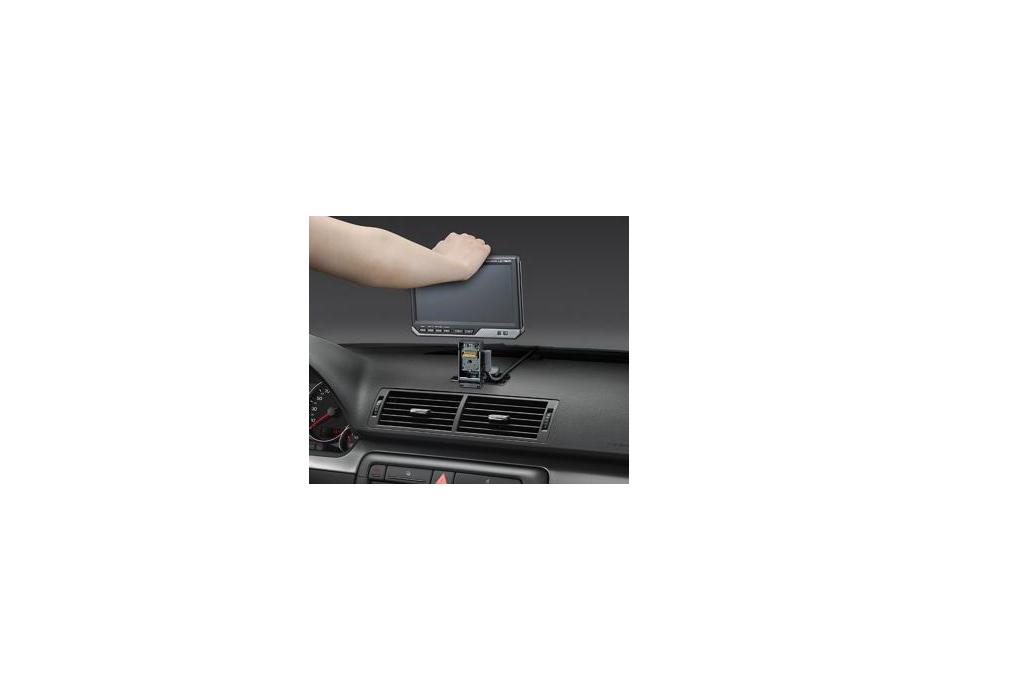

| Mechanism type | Quick Release |
| Speaker Built-in | Yes |
Video Features
| Audio/Video Output | 1 RCA |
| Video-In for Rear-view Camera | Video 2 input Only |
| Mirror-mode on Rear-view Image | Yes |
| Detection Mode Rear View Camera | By Video Signal |
| RGB Input For Navigation System | Yes |
TV- tuner Features
| PAL System | Yes |
| SECAM System | Yes |
| Band | TV1/TV2 |
| Preset | 8 Channels |
| Tuning Mode | Auto1/Auto2/Manual |
| Auto Memory Entry | Yes |
| Audio Type | Normal |
Connectivity
Video Specifications
| Color System of External Video Input | NTSC/PAL |
| External Video Input Level (RCA) | 1 Vpp / 75 Ohm |
| External Audio Max. Input Level (RCA) | 1 V / 55 kOhm |
| Analog RGB Input | 0.7 Vpp / 75 Ohm |
| Video Output Level (RCA) | 1 Vpp / 75 Ohm |
| Audio Output Level (RCA) | 1 Vpp / 1 kOhm |
Monitor Specifications
| Screen size (Diagonal) | 7 Inches Wide |
| Screen Size (WxH) | 154.1 x 87mm |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 336960pixels (480(H) x 234(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Back lighting | Cold Cathode Fluorescent Tube |
General Specifications
| Operating voltage | 14.4V (11 ~ 16V Allowable) |
| Maximum Current Consumption | 2A |
| Dimensions Main Unit (WxHxD) | 178 x 125 x 37mm |
| Weight Main Unit | 540gr, (Sleeve & Escution included) |
| Dimensions Hideaway Unit (WxHxD) | 188 x 30 x 144mm |
| Weight Hide-away Unit | 680gr |
| Operation Temperature Range | -10°C ~ 60°C |
| Storage Temperature Range | -20°C ~ 85°C |
Accessories
| Bracket | 2 pieces |
| Cable Harness | |
| Monitor Cable | |
| Monitor stand | |
| Screw 4mm x 16mm: 4 pieces | |
| Screw M4 x 8mm: 4 pieces | |
| Screw 4mm x 12mm: 5 pieces | |
| Velcro tape: 2 pieces | |
| Tyrap: 1 piece |
