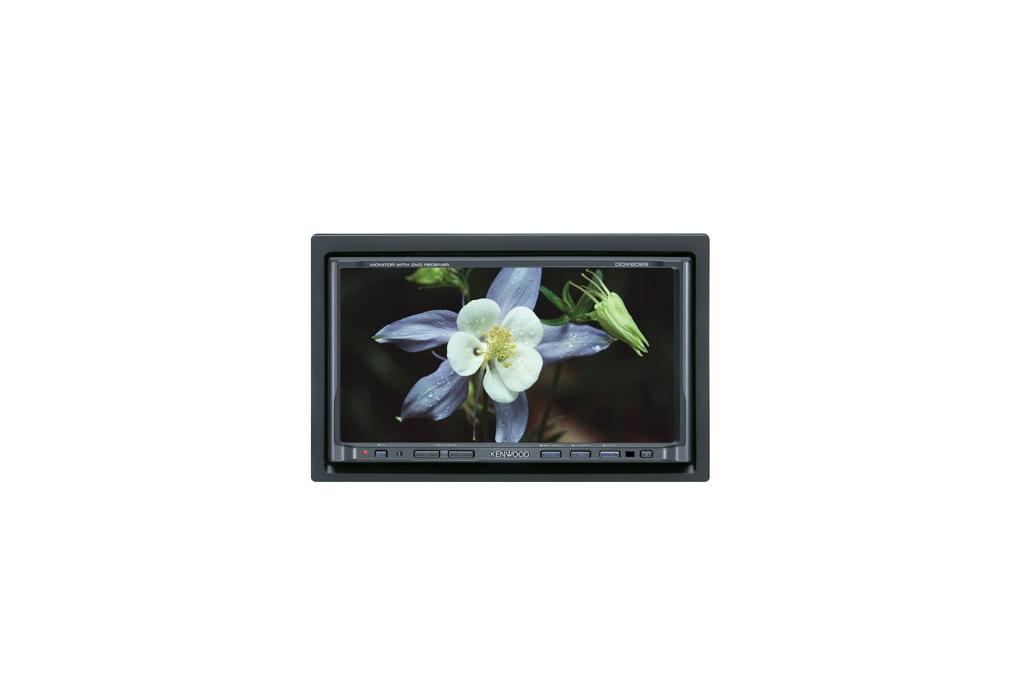

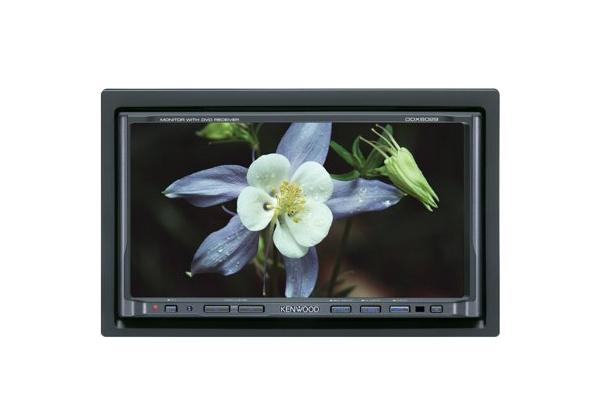

DDX6029
6.95" Wide Double-DIN Size Monitor with DVD Video/WMA/MP3/Receiver
Key Features
| 6.95 inch Wide Colour TFT Active Matrix Display |
| Motorized Reverse Tilt & 5 Step Tilt Angle Adjust |
| Interactive Touch Panel Control with OSD (On Screen Display) |
| Bluetooth Handsfree with Optional Unit (KCA-BT100) |
| DVD-Video/CD-DA/MP3/WMA/MPEG/JPEG Playback |
| 1 AV Output, 1 AV Input, 1 Video Input for Rear View Camera |
| 3 Preouts (Front/ Rear/ Subwoofer) |
| Maximum Output Power : 50W x 4 (MOSFET Power IC) |
General Features
| DIN Size | 2 DIN |
| Disabled System Indicator (DSI) | Yes |
| Security Code Function (Factory fit) | Yes |
| On Screen Display (OSD) Operation | Yes |
| Selectable GUI Background Wallpaper | Yes |
| Key Illumination | Blue |
| Installer Memory | Yes |
| Back-up Memory | Yes |
| Attenuator with Smooth Volume Return | Yes |
| Touch Sensor Tone | Yes |
| IR Remote Control included | RC-DV430 |
| Digital Clock (24H) | Yes |
| ISO connector | Yes |
Monitor Features
| In-Dash/On-Dash | In-Dash |
| Screen Type | TFT 6.95" Wide |
| Touch Panel | |
| Display Mode | 4 Mode (Full/Just/Zoom/Normal) |
| Screen Adjustments | Brigtness/Tint/Color/Contrast/Black Level |
| Dimmer function | Manual |
| Visual Source Mode | DVD/Video/Navigation/(TV) |
| Mechanism type | Auto Slide |
| Mechanism Tilt Adjustment | 6 steps |
| Reverse Tilt | Yes |
| Slide Adjustment | No |
| NTSC/PAL judge | Auto |
Multimedia GUI Features
| OSDC Type | Character |
| Menu character font | English |
| Menu text | English |
| Colour Pallet | 32 |
| Base Colour Class | 512 |
| Wallpaper customizable |
Tuner Features
| FM Reception | Yes |
| FM Stereo / Mono Selector | Yes |
| AM (MW/LW) Reception | Yes |
| Tuning mode | |
| Up/Down Seek/Scan | Yes |
| Presets | 24 Presets (18FM / 3LW / 3MW) |
| Automatic Memory Entry (AME) | Yes |
| Radio Data System | Yes |
| Radio Text | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
| K3I - Clean Reception Tuner | Yes |
DVD-Features
| Mechanism | DVS-7600 |
| Disc Capacity | 1 Disc(s) |
| DVD Region Code | 2 |
| VCD Compatible | Yes |
| DVD±R/RW Compatible | Yes |
| CD-R/RW Compatible | Yes |
| CD-DA Repeat/Scan/Random play | Yes |
| CD-DA Disc Name Preset (10 disc's) | Yes |
| CD Text | |
| MP3 | Yes |
| ID3 Tag | Yes |
| WMA | Yes |
| WMA Tag | Yes |
| MPEG1/2 Video File (.mpg) Compatible | Yes |
| JPEG File (.jpg) Compatible | Yes |
| Zoom Control (DVD/VCD) | Yes |
| 2nd Disc Prevention Mechanism | Yes |
| Digital/Analog Converter | 24 bit |
| Shock Proof | Yes |
| Time Code Display | Yes |
| Direct Search | Yes |
| Resume Play / Last Position Memory | Yes |
| Disc Menu Direct Touch | Yes |
| dts Digital Output | Optical |
External Media Control Features
| Dual Changer Control (CH1, CH2 & AUX) | Yes |
| CD Text Ready with Compatible KENWOOD Units | Yes |
| Disc & Track Repeat | Yes |
| Disc & Track Scan | Yes |
| Disc & Track Random Play | Yes |
| Direct Access | Yes |
| Disc Name Preset Play (DNPS) | Yes |
Audio features
| Max. Output Power (MOSFET Power IC) | 4 x 50W |
| Pre-out | 3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level | 2V |
| Auxiliary Input | No |
| Subwoofer Reference Level Adj. | Yes |
| System E's+ (Built-in HPF & LPF) | Yes |
| Dual Zone/2Zone Source & Volume Control | Yes |
| Dual Zone (FRONT / REAR Switchable) | Yes |
| Source Tone Control & Memory | Bass/Treble/Midrange |
| Balance/Fader Control | Yes |
| Att.(-20dB) with smooth Volume Return | Yes |
| System QEX (Preset & Manual Sound Control) | Yes |
| Beep On/Off | Yes |
Video Features
| Audio/Video Output | 1 RCA |
| Audio/Video Input | 1 RCA |
| Video-In for Rear-view Camera | |
| Mirror-mode on Rear-view Image | Yes |
| Detection Mode Rear View Camera | By Video Signal |
| RGB Input For Navigation System | Yes |
| DVD Menu Direct Touch Operation | Yes |
| Dolby Digital Decoder | Yes |
| dts Decoder | Yes |
| Linear PCM Decoder | Yes |
| TV ready | Yes |
TV- tuner Features
| PAL System | Yes |
| SECAM System | Yes |
| Band | TV1/TV2 |
| Preset | 12 (6ch x 2 Band) |
| Tuning Mode | Auto1/Auto2/Manual |
| Auto Memory Entry | Yes |
| Audio Type | Normal |
| Station Name Preset | Yes |
Connectivity
| Reverse sensor wire | Yes |
| Parking sensor (handbrake) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
| Dimmer control wire | Yes |
| OEM Wired Remote Control ready | Yes |
Tuner Specifications
| FM Frequency Range | 87.5MHz ~ 108MHz |
| FM Frequency Step | 50kHz |
| FM Usable Sensitivity | 0.7μV/75ohm (S/N 26dBf) |
| FM Quieting Sensitivity | 1.6μV/75ohm (S/N 46dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Selectivity(DIN) | over 80dB (±400kHz) |
| FM Stereo Separation (1kHz) | 35dB |
| MW Frequency Range | 531kHz ~ 1611kHz (9kHz step) |
| MW Frequency step | 9kHz |
| MW Usable Sensitivity | 25μV |
| LW Frequency Range | 153kHz ~ 281kHz (9kHz step) |
| LW Usable Sensitivity | 45μV |
DVD Specifications
| D/A Converter | 24 bit |
| Video decoder | Linear PCM/Dolby Digital/dts/MP3/WMA |
| Wow & Flutter | Below Measurable Limit |
| Freq. Resp. (96kHz Sampling) | 20Hz ~ 44kHz |
| Freq. Resp. (48kHz Sampling) | 20Hz ~ 22kHz |
| Freq. Resp. (44,1kHz Sampling) | 20Hz ~ 20kHz |
| Total Harmonic Distortion | 0.01% (1kHz) |
| Signal to Noise Ratio | 98dB (1kHz) |
| Dynamic Range | 98dB |
| FM Signal to Noise Ratio | 65dB(MONO) |
| Disc Format | DVD-Video/Video-CD/CD-DA |
| Sample Frequency | 44.1kHz/48kHz/96kHz |
| Quantifying bit number | 16/20/24bit |
Audio Specifications
| Maximum Power | 50 W x 4 |
| Output Power (DIN45324,+B=14.4v) | 30 W x 4 |
| Preout Level | 2 mV / 10 kOhm, |
| Preout Impedance | ≤ 600 Ohm |
| Bass Tone Control | 100 Hz ±10 dB |
| Middle Tone Control | 1 kHz ±10 dB |
| Treble Tone Control | 10 kHz ±10 dB |
Video Specifications
| Color System of External Video Input | NTSC/PAL |
| External Video Input Level (RCA) | 1 Vpp / 75 Ohm |
| External Audio Max. Input Level (RCA) | 2 V / 25 kOhm |
| Analog RGB Input | 0.7 Vpp / 75 Ohm |
Monitor Specifications
| Screen size (Diagonal) | 6.95 Inches Wide |
| Screen Size (WxH) | 156.2 x 82.4mm |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 336960pixels (480(H) x 234(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Back lighting | Cold Cathode Fluorescent Tube |
General Specifications
| Operating voltage | 14.4V (11 ~ 16V Allowable) |
| Maximum Current Consumption | 15A |
| Dimensions (WxHxD) | 182 x 112 x 163mm |
| Weight | 2600 gr. |
| Operation Temperature Range | -10°C ~ 60°C |
| Storage Temperature Range | -20°C ~ 85°C |
Accessories
| Remote control | |
| Installation Sleve | |
| Cable Harness | |
| ISO Antenna Adaptor | |
| Release Keys (2 pieces) | |
| Escutcheon (1 Standard, 1 Universal) | |
| Double-sided Tape |
