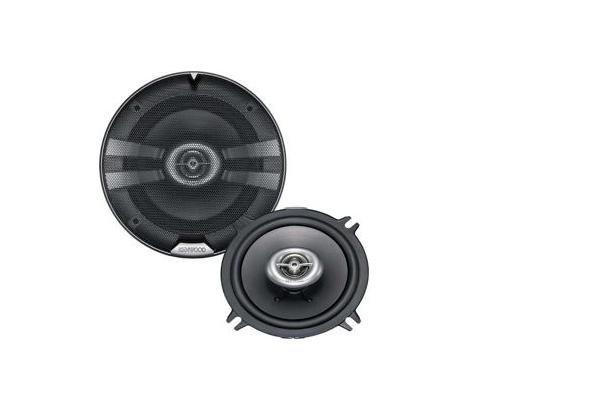

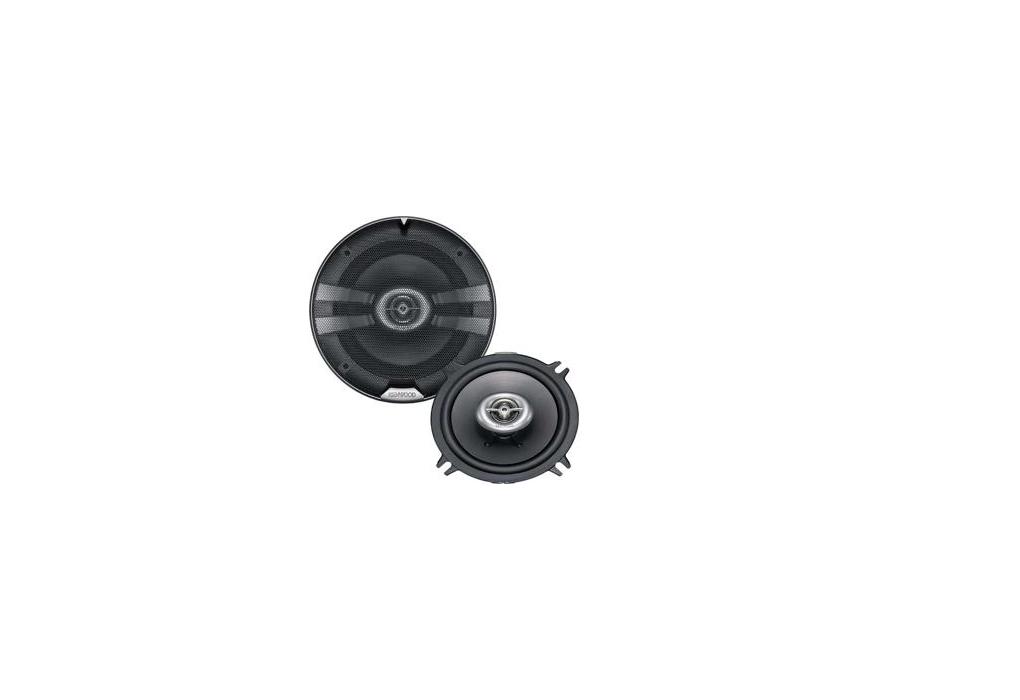

KFC-1380ie
13cm, 2-way Flush Mount Speaker System
DISCONTINUED MODEL
Key Features
| 2-way 2-speaker System |
| 130mm Pearl Mica Injection P.P.Cone Woofer |
| 25mm P.E.I. Balanced Dome Tweeter |
| Image Enhancer (Patent of KENWOOD since 1987) |
| 160W Peak Input Power |
Speaker Features
| Speaker System | 2-way 2-speaker System |
| Speaker Type | Coaxial |
| Peak Input Power | 160W |
| Rated Input Power | 35W |
| Speaker Size | 130mm |
| Speaker Cone Design | Pearl Mica Injection P.P.Cone |
| Image Enhancer | Yes |
| Magnet Type | Ferrit |
| Terminals | Slide type |
| Installation Capabillity | Door/Rear Deck |
Speaker/woofer Specifications
| Peak Input Power | 160W |
| Maximum Input Power | 70W |
| Rated Input Power | 35W |
| Woofer Cone material | Pearl Mica Injection P.P.Cone |
| Speaker Basket | Steel |
| Weight of Magnet | 160gr |
| Speaker Surround | Butyl Rubber |
| Sensitivity | 91dB/W/m |
| Frequency Response | 45Hz ~ 20000Hz |
| Speaker Impedance | 4Ω |
| Dimensions (W x H x D) | 158 x 158 x 66mm |
| Mouting Hole Diameter Ø | 112mm |
| Mounting Depth | 46mm |
| Speaker Weight with Grille (pc.) | 630gr |
| Speaker Weight w/o Grille (pc.) | 550gr |
| Gross Weight | 1700gr |
Tweeter Specifications
| Cone Size | 25mm |
| Cone Material | P.E.I. Balanced Dome |
| Magnet Type | Ferrite |
| Cross-over Frequency | 5500Hz |
Accessories
| 4x25mm Screw: 8 pieces | |
| Clip Nut: 8 pieces | |
| Rubber tape | |
| Speaker cable | 0m |
